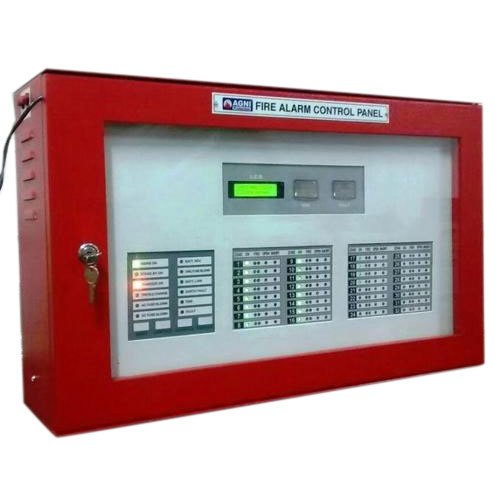

Conventional fire alarm panel
Microprocessor Fire Alarm Panel
- To deal with the clients' requirements in effective manner, we bring forth commendabl Microprocessor Addressable Fire Alarm Panel. We manufacture these products by making use of high-grade basic material and latest technology. Furthermore, we make sure to develop these products in line with the defined parameters of the industry.
Other information:
- Reliable and cost effective solution for fire detection & alarm. Available from small to large size installation which have 1 Zone to 60 Zones Specially suited for the small office, workplace, hospitals, schools, small & high rise building
Features:
Seven segment digital, led display provide to show zone/floor numbers in fire condition as well as cable fault conditions
- Complete Microprocessor base Addressable type
- Single 4 core lopping system for all the zones/floors therefor it reduce cable cost (approximately 80%)
- Hooter for fire & Duel tone buzzer for cable fault condition common fire flashing indication
- Individuals zone / floors hooter check facility from panel membrane type key board
- Fire detect one or more zone at a time a system will indicate zone / Floor number on display one by one with alarm
- Auto reset and alarm accept facility.
- All call facility from panel membrane type key board
- Floor sound cancelled & resound facility from panel membrane type key board
- Isolate facility provided.
- System on status indicator by flashing led.
- Automatic battery charging facility or battery back-upin
- Compact size of control panel.
- Wall/concealed mounting type cabinet
- AC & DC fuse protection
- AC & DC fuse blown indication
- Electrical specification: Power supply Input: 220 V AC 50 Hz. +- 1 0%
Environment operating limits:
- Temperature: +5 C to + 50 C
- Humidity: 90% to 95% RH condensing.
Construction:
- Material: 1.2/1.5 mm CRCA sheet duly powder coated.
- Cable entry: From top & back (20 mm knockout).
- No. zone: 1 to 60 zones.
Internal sounders:
- Dual tone hooter for fire condition.
- Intermittent buzzer for cable fault condition.
